Siemens 3SU1106-6AA60-1AA0 Spia luminosa piatto Bianco 230 V/AC 1 pz.
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Quantità (Pezzo(i))
Risparmio
Prezzo dell'imballaggio (IVA escl.)
1
-
32,78 €
3
3% = 1,07 €
31,71 €
5
5% = 1,49 €
31,29 €
10
5% = 1,77 €
31,01 €
25
6% = 2,10 €
30,68 €
I prezzi a scala possono variare a seconda del venditore
Risparmio 0,00 €
Numero
Totale (32,78 € / Pezzo)
32,78 €
IVA escl.
Solo 4 Pezzo(i) disponibili
Dati tecnici
- Materiale dell'elemento di azionamento: plastica
- Tipo prodotto
Spia luminosa
- Modello
Plastica
- Colore
Bianco
- Tensione di esercizio
230 V/AC
- Ø Foro di montaggio
22 mm
n.rel.

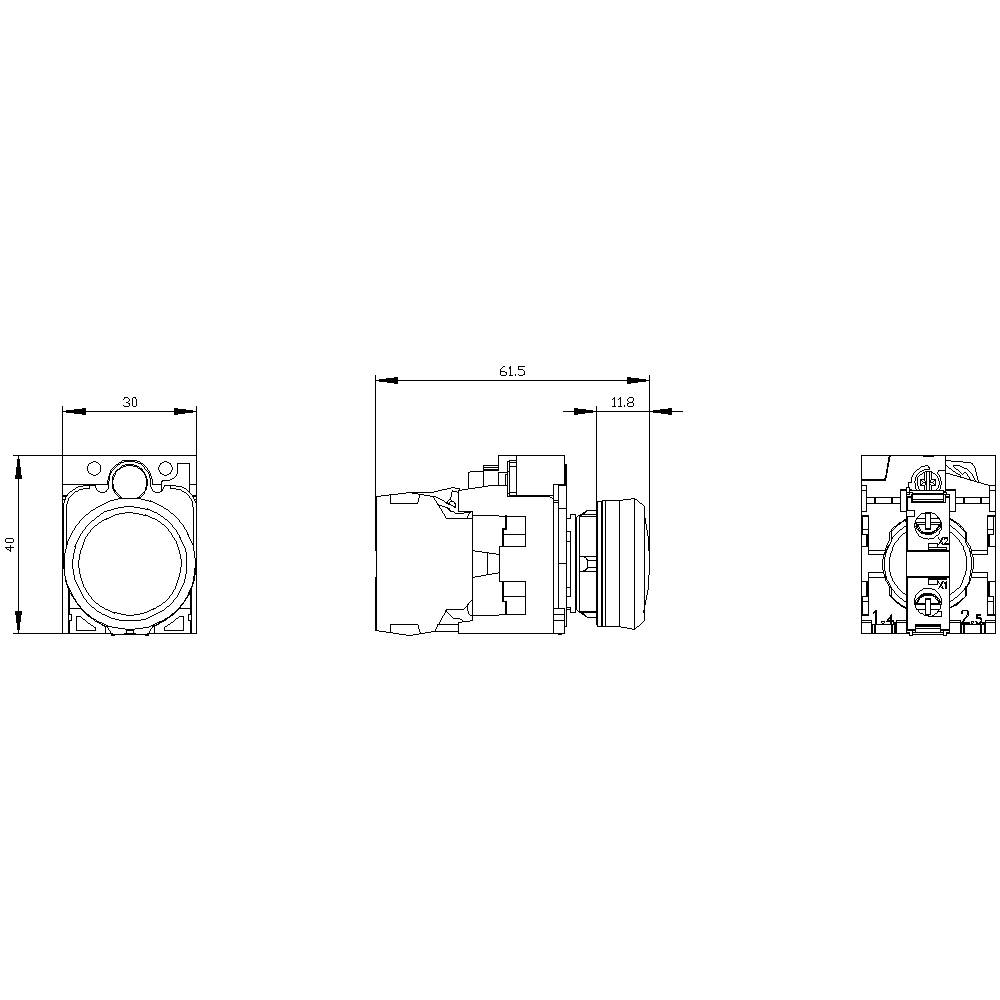

- Dim.
(Ø x A) 29.45 mm x 40 mm
- Collegamento
A vite
- Contenuto
1 pz.
- Larghezza
30 mm
- Altezza
40 mm
- Diametro
29.45 mm
- Compatibile RoHS
Sì
- Caratteristiche
piatto
IP66
IP67
IP69/IP69K
- Temperatura max.
+70 °C
- Min. temperatura
-25 °C
- Tipo
3SU1106-6AA60-1AA0
- Illuminante incluso
Sì
22.3 mm
AC
1
Other
29.5 mm
11.8 mm
IP67/IP69K
TRUE
Other
FALSE
Other
Other
- UKCA
Non rilevante
Documenti & Download
Scheda tecnica
Scheda tecnica 1379629 Siemens 3SU1106-6AA60-1AA0 Spia luminosa piatto Bianco 230 V/AC 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1379629 Siemens 3SU1106-6AA60-1AA0 Spia luminosa piatto Bianco 230 V/AC 1 pz.
Informazioni
Informazioni 1379629 Siemens 3SU1106-6AA60-1AA0 Spia luminosa piatto Bianco 230 V/AC 1 pz.
Descrizione

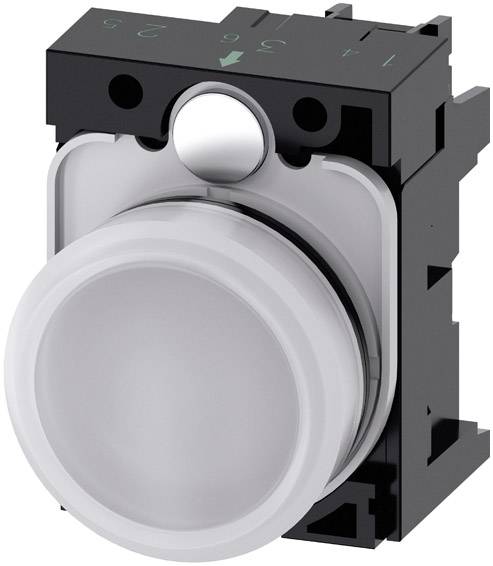

Indicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
