Siemens 3SU1152-6AA60-1AA0 Indicatore ottico Lucido Bianco 24 V/AC, 24 V/DC 1 pz.
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
7 Pezzo(i)
Vendita e spedizione:
spedizione gratuita a partire da 100,00 € valore dell'ordine con questo fornitore
Numero
Totale
14,40 €
Prodotto proveniente da altro paese EU (IVA 0%)
7,37 €
Solo 7 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici

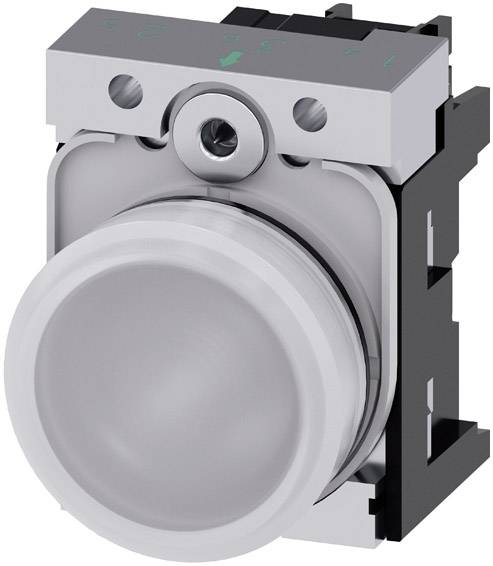

- Indicatore luminoso, 22 mm, rotondo, metallo, altamente speculare, bianco, lente liscia, con supporto, modulo LED CON LED INTEGRATO AC/DC 24V, attacco a vite
- Tipo prodotto
Indicatore ottico
- Modello
Metallo
- Colore
Bianco
- Tensione di esercizio
24 V/AC
24 V/DC
- Ø Foro di montaggio
22 mm
n.rel.
- Collegamento
A vite
- Peso
0.0616 kg
- Contenuto
1 pz.
- Compatibile RoHS
Sì
- Caratteristiche
Lucido
IP67/IP69
- Tipo
3SU1152-6AA60-1AA0
- Illuminante incluso
Sì
22.3 mm
AC/DC
1
Other
29.5 mm
11.8 mm
IP67/IP69K
TRUE
Other
FALSE
Other
Other
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1379608 Siemens 3SU1152-6AA60-1AA0 Indicatore ottico Lucido Bianco 24 V/AC, 24 V/DC 1 pz.
Scheda tecnica 1379608 Siemens 3SU1152-6AA60-1AA0 Indicatore ottico Lucido Bianco 24 V/AC, 24 V/DC 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1379608 Siemens 3SU1152-6AA60-1AA0 Indicatore ottico Lucido Bianco 24 V/AC, 24 V/DC 1 pz.
Informazioni
Informazioni 1379608 Siemens 3SU1152-6AA60-1AA0 Indicatore ottico Lucido Bianco 24 V/AC, 24 V/DC 1 pz.
Descrizione
Indicator lights, 22 mm, round, metal, shiny, white, lens, smooth, with holder, LED module with integrated LED 24 V AC/DC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
